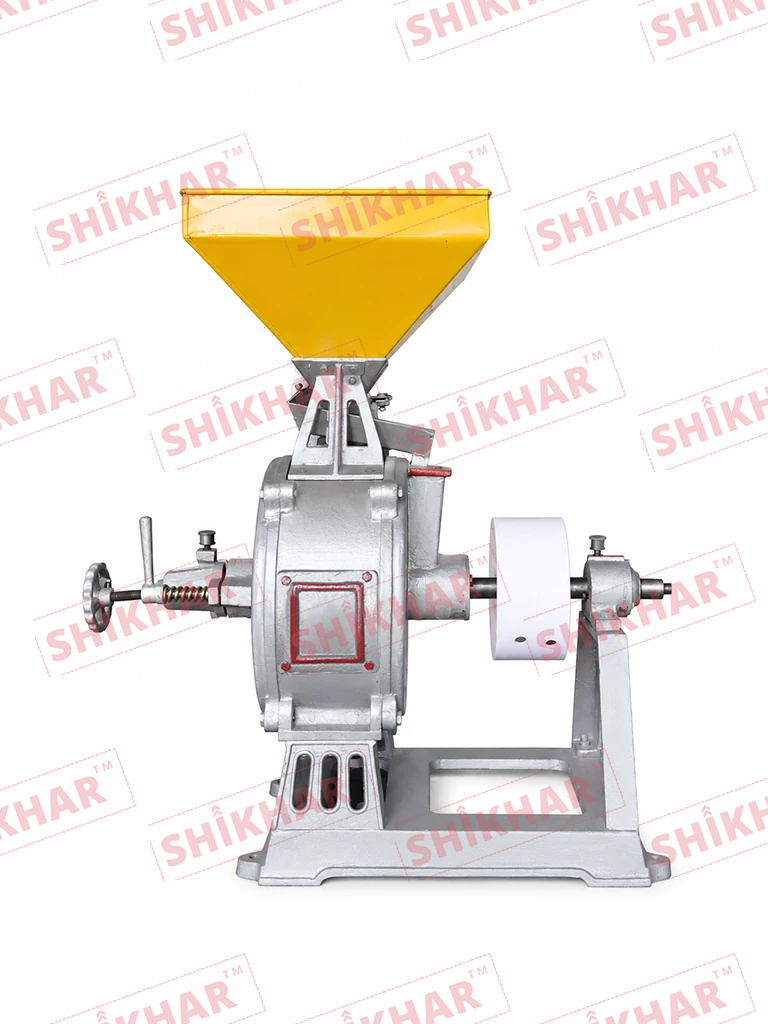

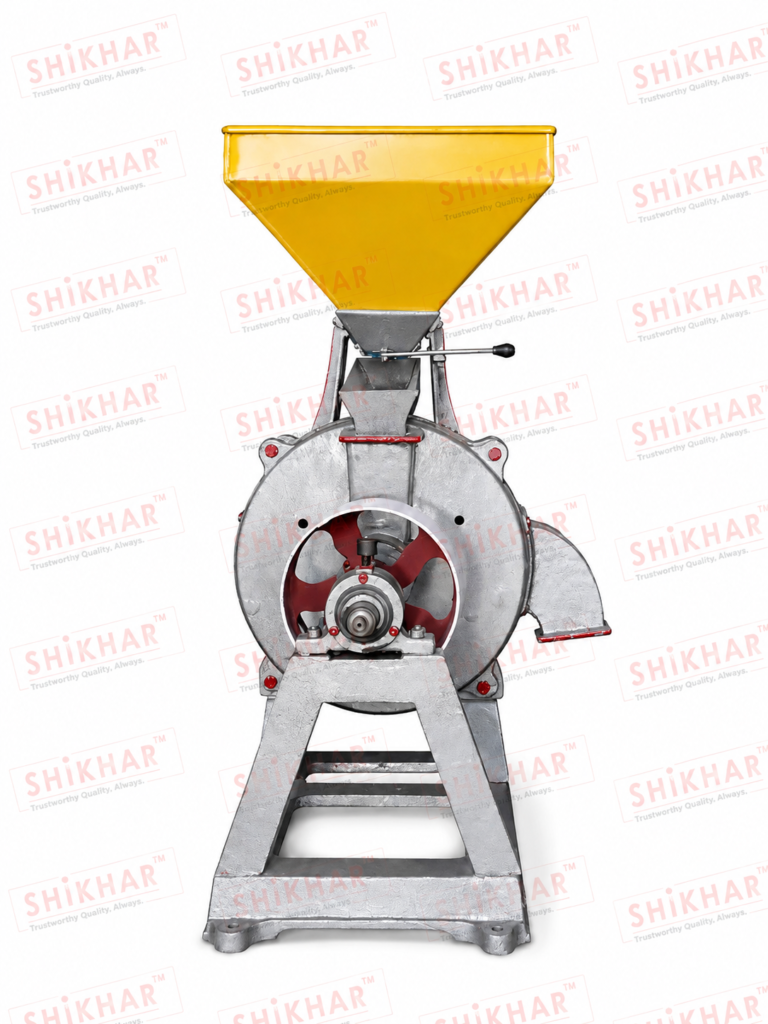

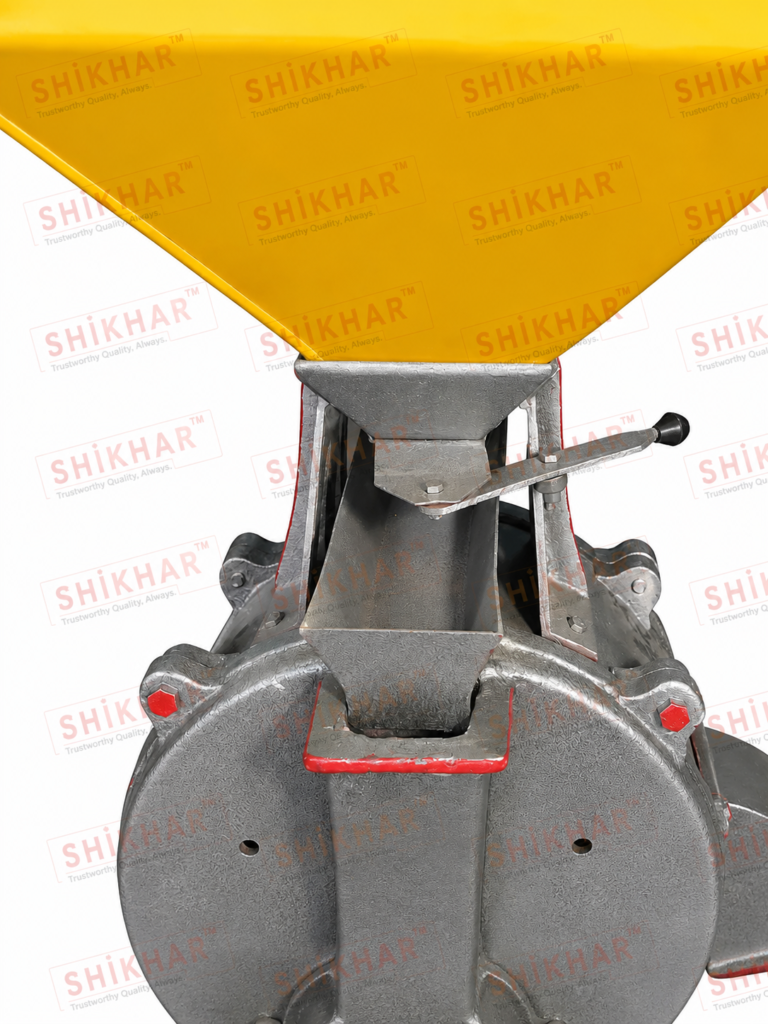

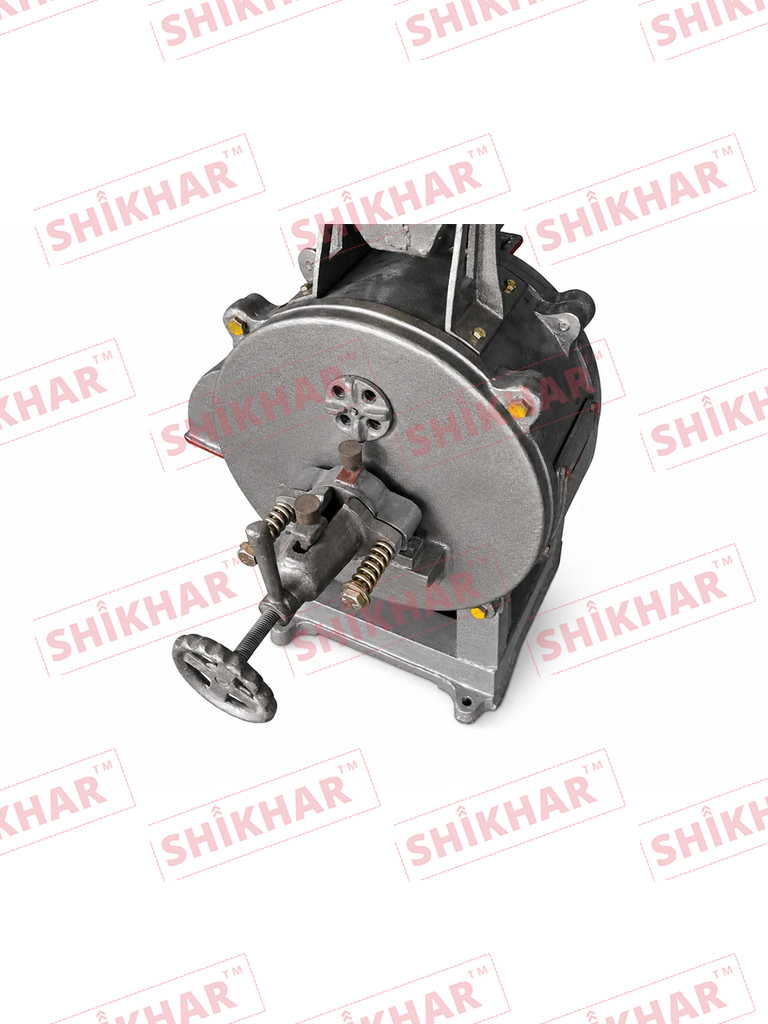

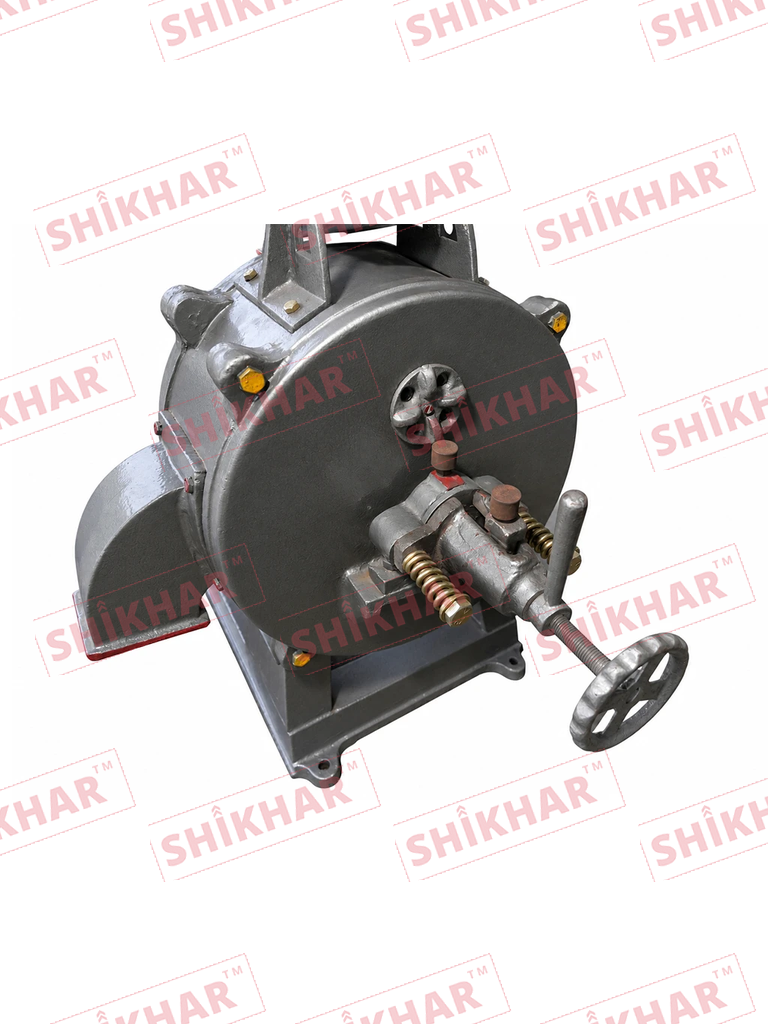

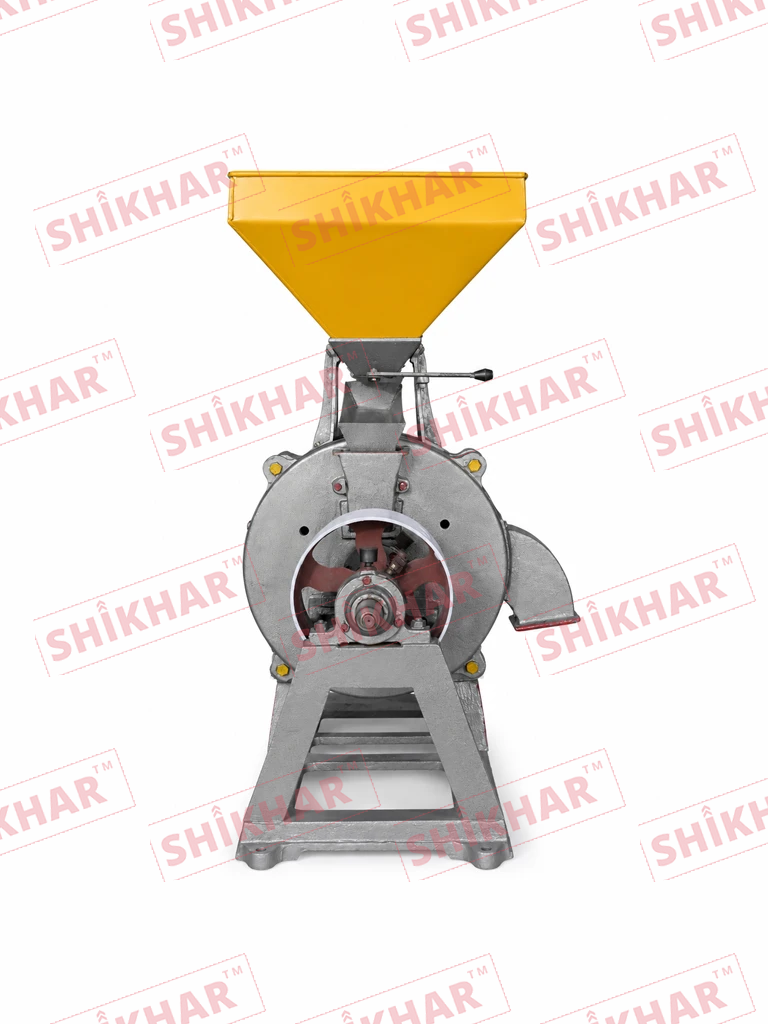

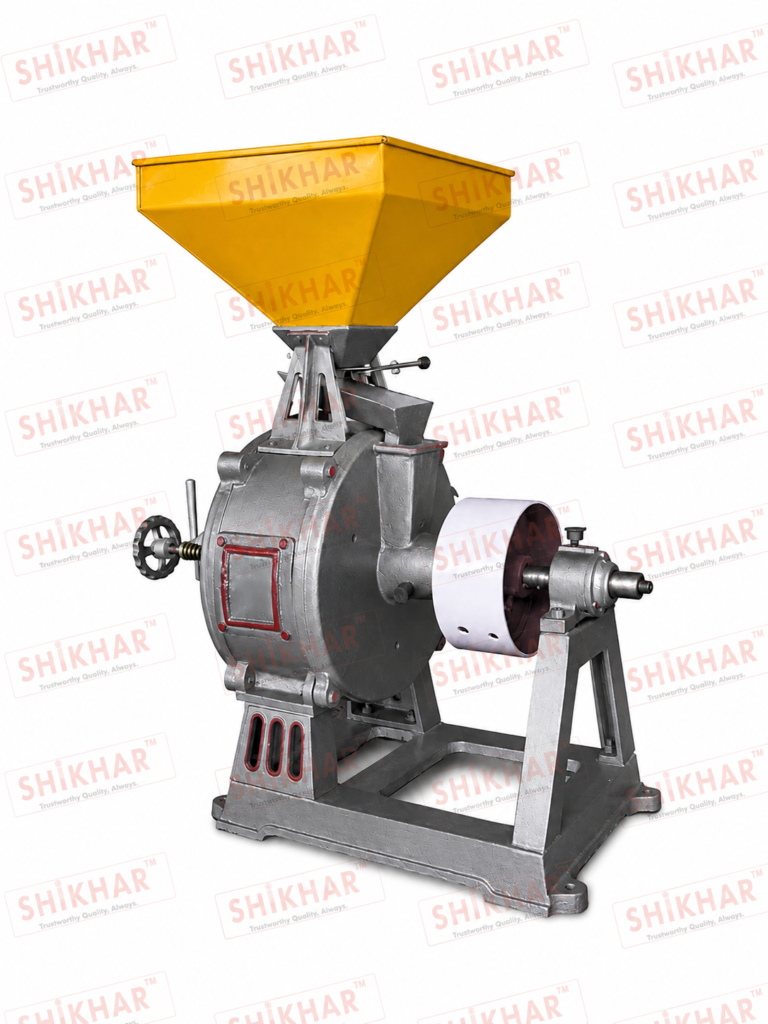

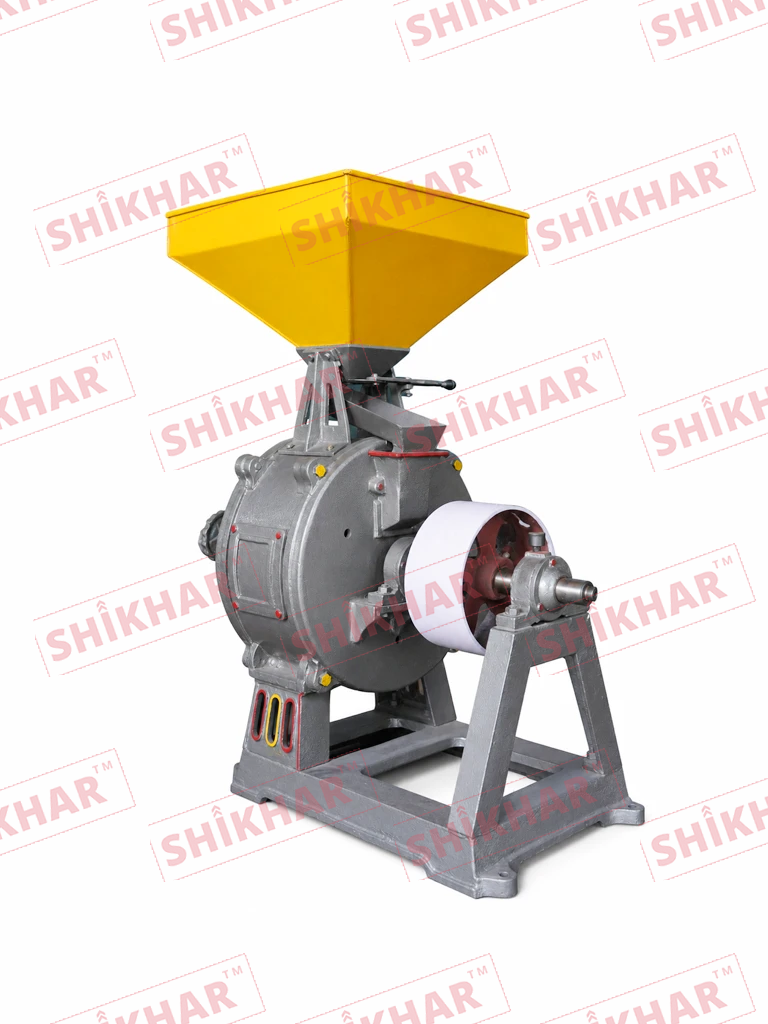

Vertical Third Pedestal Danish Type Mill
Inspired by the globally acclaimed Danish-style vertical mills, the SHIKHAR™ Third Pedestal Danish Type Stone Mill has been re-engineered to deliver unmatched stability, minimal vibrations, and extended operational life. Its robust construction—featuring a mechanically balanced heavy cast iron body and a reinforced third pedestal—ensures smooth performance even under continuous commercial usage.
- Applications: Regular everyday milling requirements
- Ideal For: All types of Wheat, Spices, Pulses, etc.
This high-performance vertical mill integrates precision engineering with the reliability of double NBC®/SKF® bearings for minimal maintenance and superior output quality, making it the ideal choice for professional millers focused on longevity and performance.
Key Features of Vertical Third Pedestal Danish Type Mill:

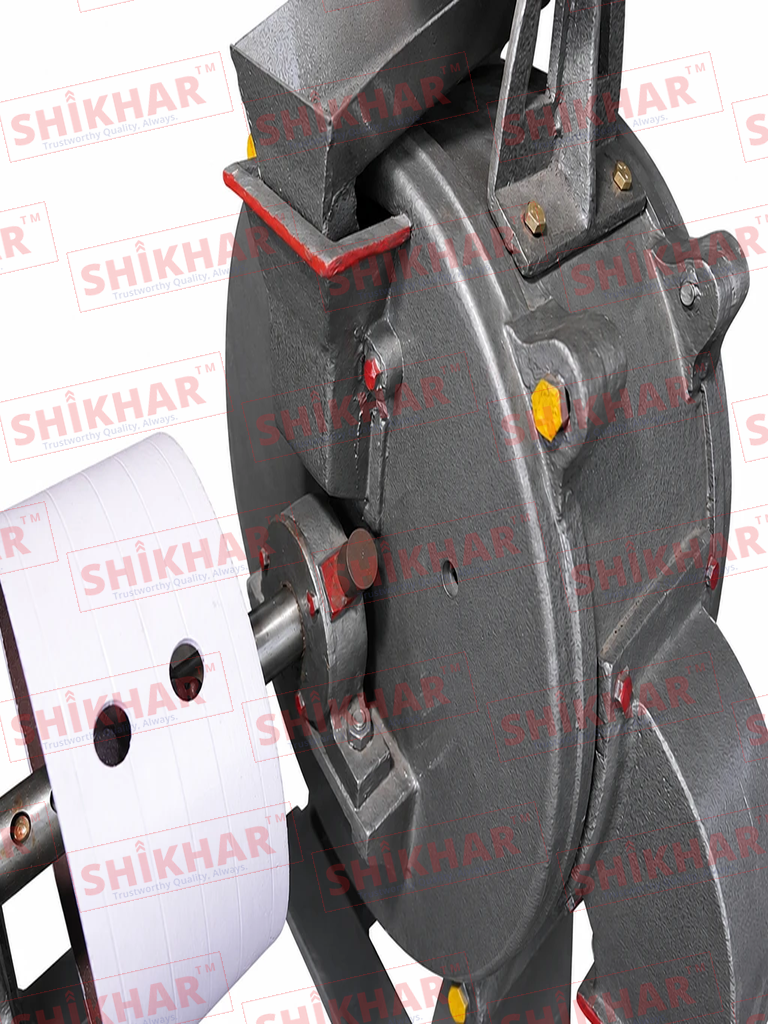

- Mechanically Balanced Cast Iron Body: Built on a well-levelled platform to ensure strength, stability, and consistent grinding performance.
- Triple-Pedestal Configuration: Includes a third support pedestal for the shaft, significantly reducing vibration and extending the life of both bearings and shaft.
- Premium NBC®/SKF® Bearings: Fitted with six high-durability, dust-resistant bearings to guarantee smooth and quiet operation, even during prolonged use.
- High-Output SHIKHAR™ Emery Stones: Comes equipped with SHIKHAR™ brand emery stones, recognized for delivering maximum grinding efficiency and consistency.
- Heavy-Duty Fitments: Constructed using top-grade nuts, bolts, washers, studs, and other components to ensure exceptional strength, longevity, and dependability.
| Bottom Rotating Stone Diameter Size | Shaft Thickness (MM) | Bearing Size | Pulley Drive Size Available | Suggested Machine RPM | Electrical Motor HP required (Three Phase) | Hopper Capacity (Kgs) | Net Weight (Kgs) w/o emery millstones, electric motor & accessories | Gross Weight (Kgs) with RED emery stones but w/o motor or accessories | Gross Weight (Kgs) with BLACK emery stones but w/o motor or accessories | Average output in Kgs (Medium fineness Whole Wheat Flour as per Factory test conditions) |
|---|---|---|---|---|---|---|---|---|---|---|
|
400 MM (16”) |
40 |
6208 |
10”x2B/10”x2C/Flat10” OR 12”x2B/12”x2C/Flat12” |
650 |
7.5 |
35 |
150 |
195 |
205 |
90 |
|
500 MM (20”) |
40 |
6208 |
10”x2B/10”x2C/Flat10” OR 12”x2B/12”x2C/Flat12” |
600 |
10 |
35 |
200 |
280 |
290 |
110 |
Kindly Note:
- Above Dimensions & Weights are approximate & indicative. Actuals may vary.
- Outputs are approximate and as per factory test condition only. Actuals may vary.
- Dimensions, Features and Weights may change without prior information.
- All weights and dimensions are without motor, generator, belt, starter, panel or any other accessories unless stated otherwise.
